Hollow fiber membrane modules

PVDF and PP shade-type modules

0571-88902311/88902322

Office address: Room 501, Unit D, Building 6, Xigangxinjie, 206 Zhenhua Road, Westlake District, Hangzhou City, Zhejiang Province, PRC, 310030
Phone: 86-571-88902311 / 88902322 86-13505712263

MORE>>

POSITION：HOME>

PVDF Membrane Box

發(fā)布日期：2020-06-23 瀏覽次數(shù)：4036

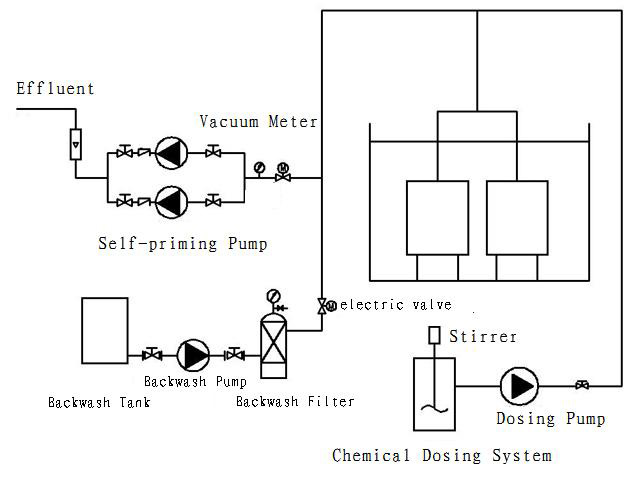

PVDF membrane box process flow

PVDF membrane box

Design parameters

Model	Treatment capacity(T/D)	Number of shade-type membrane	Material	Dimension (m)
HQ2-26M	100	10	Stainless steel	1.3×0.6×2.7
	150	16		1.3×0.85×2.7
	200	20		1.3×1.0×2.7
	250	26		1.3×1.3×2.7
	300	30		1.3×1.5×2.7
HQ2-13M	25	6		1.3×0.4×1.5
	50	10		1.3×0.6×1.5
	100	20		1.3×1.0×1.5

Notes: Dimension can be adjusted according to the water quality and tank size
